BOSSO
Procurement · Product Ordering & Pricing
Job Materials & Pricing Calculator
Enter each physical Area of the job (Front, Side 1, Side 2, Back, Patio Cover, etc) —
every foot of roofline belongs to exactly one Area, never split across two. Then build Groups,
named customer-facing packages built from one or more Areas ("Full House" always includes every Area
automatically). The customer tab shows each Group as a package they can choose between.
Customer & OpportunityDealer Only
Search GHL by name, email, or phone, or start a new opportunity for a door-knock lead. Present/Accept below act on whichever opportunity is linked here.
No matching opportunity found.
Job Setup
Track type and light style apply to every area on this job. Includes a 20% safety buffer on lights & track (temporarily bumped up from 10% until estimate accuracy is validated).
Areas
Enter linear footage for each physical area of the job — Front, Side 1, Side 2, Back, Patio Cover, etc. Areas are atomic: each foot of roofline is counted in exactly one Area, never in two.
Groups
A Group is a named customer-facing package built from Areas. Full House always automatically includes every Area — build others (Front Only, Front + Patio Cover, etc) by checking which Areas belong. Group names are what the customer sees and what goes into the contract on Accept, so name them accordingly.
Viewing Group Detail
Pick which group's total footage, parts order, dealer cost, and pricing to review below.
Part
Calculation
Order Qty
Quantities include the 20% safety buffer (temporarily bumped up from 10%). Always round up to whole units. T Connections use the post-buffer light count.
Dealer Cost EstimateDealer Only
Pack pricing from the May 2026 Dealer Pricing Structure. Pre-shipping, before tax. Elite volume rebates (3–9% on incremental purchases above $500k) are not reflected here — confirm baseline numbers via the commission calculator.
Show dealer pricing
Part
Order Qty
Pack Size
Packs
Pack Price
Line Cost
Total Dealer Cost
$0.00
Dealer Cost / LF
$0.00
Total Dealer Cost
$0.00
Customer Price
Initial target is $35–$40 per linear foot, installed. This is the default rate, applied to any Group that doesn't have its own rate override set in the Groups card below (e.g. a single zone priced higher than Full House). Reps can come down a little if needed — baseline will be confirmed against the commission calculators later.
Target range: $35.00 – $40.00 / LF
Customer Total Price (this group)
$0.00
Gross Margin ($)
$0.00
Gross Margin (%)
0%
Send to CustomerDealer Only
Generate a link the customer can open on their own, no login required, to review packages, photos, and colors before they commit. Always shows the latest saved measurements — if you edit the quote after sending, they'll see the update next time they open it.
Accept QuoteDealer Only
Customer has verbally accepted. Pick which Group they accepted, confirm the deposit %, and Accept — this sets Contract Total, Deposit Amount, and Scope on the linked GHL opportunity. Scope is the accepted group's name plus the areas it includes (e.g. "Full House (Front, Side 1, Side 2, Back)") — no cost or margin data goes into it.
Contract Total
$0.00
Deposit Amount
$0.00
Scope (goes into the contract)
—
Pending ApprovalsApprover Only
Deals accepted below the redline rate, parked here instead of Won until an approver signs off — the contract-generation automation only fires once one of these is Approved.
View the 6 ordering rules
01 · LIGHTS
(Ft ÷ 0.6666) × 1.20
Footage ÷ 0.6666 gives the actual light count. The extra 20% (temporarily bumped from 10% until estimate accuracy is validated) covers underbidding, lost lights, or field damage.
02 · TRACK
(Ft ÷ 6.6666) × 1.20
Footage ÷ 6.6666 yields the pieces needed. Always order 20% more (temporarily bumped from 10%) to absorb cuts and damaged stock.
03 · CONTROL COMBO
1 combo/install + 1 box/200ft
Each combo is a Power Box + Control Module, one per install. After the first 200 ft, add one Power Box per extra 200 ft.
04 · EXTENSION
10 per job
Flat allocation. Ten extensions go on every job, regardless of footage.
05 · T CONNECTION
1 per 50 lights
Use the post-buffer light count from Rule 01, divide by 50, and round up.
06 · AUDIO CABLE
1.5 ft per 1 ft
Audio runs are never straight. The 1.5× multiplier covers routing, drops, and slack at each module.
BOSSO SMART LIGHTING
Your Custom Lighting Estimate
Permanent, app-controlled architectural lighting — designed and installed for your home's rooflines.
Prepared for
Choose Your Package
Pricing shown reflects the footage measured for your home.
Includes materials, professional installation, and app setup.

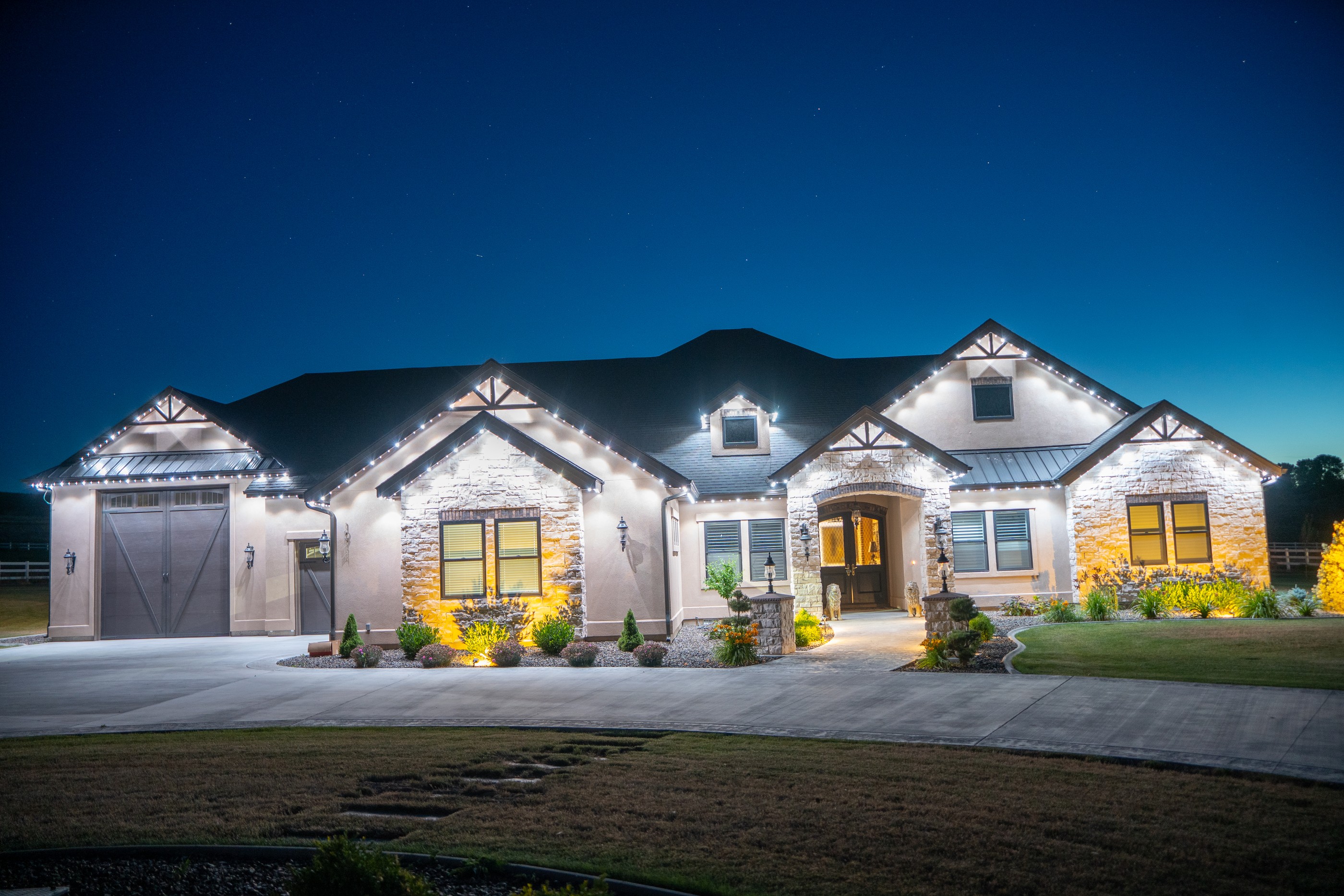

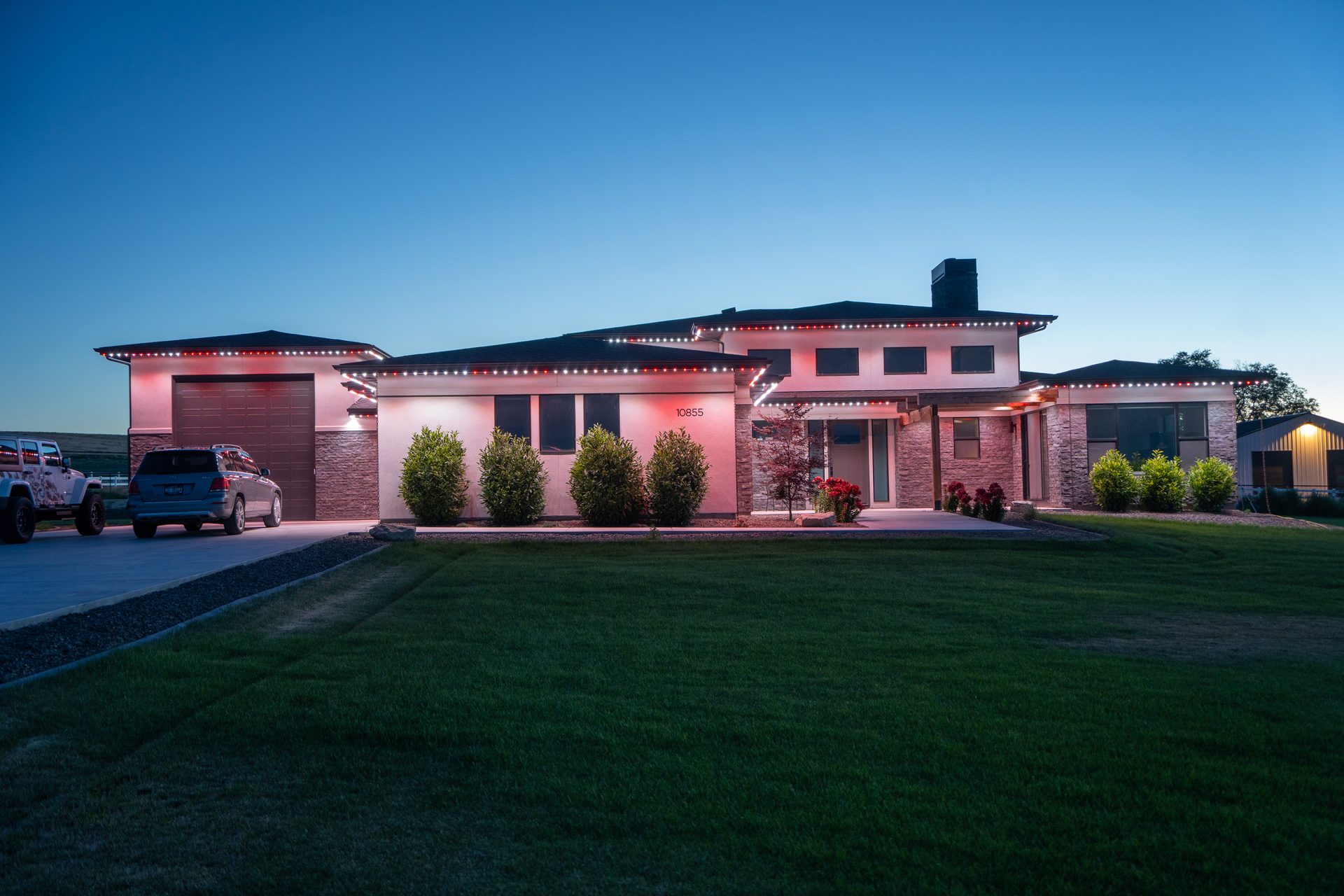

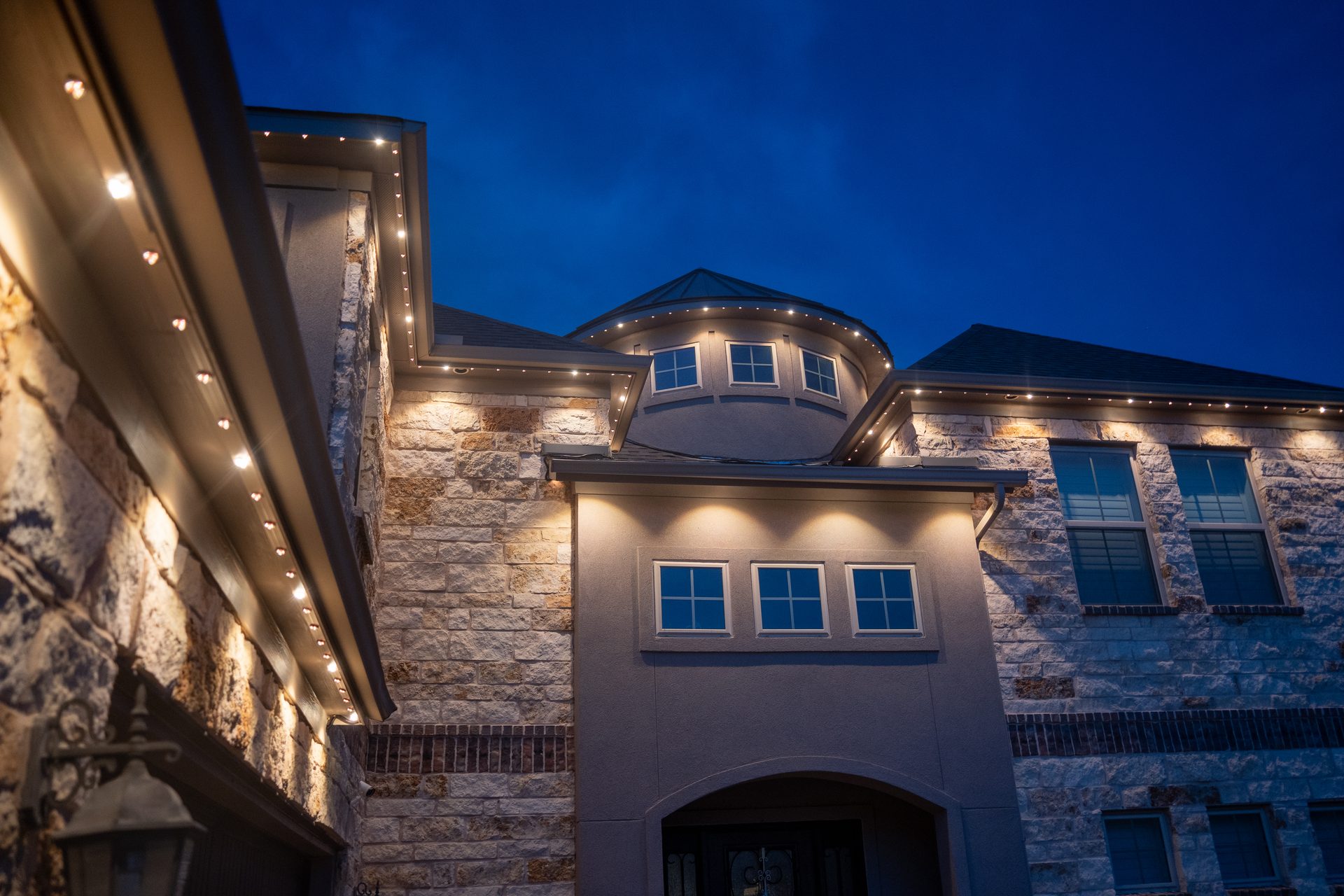

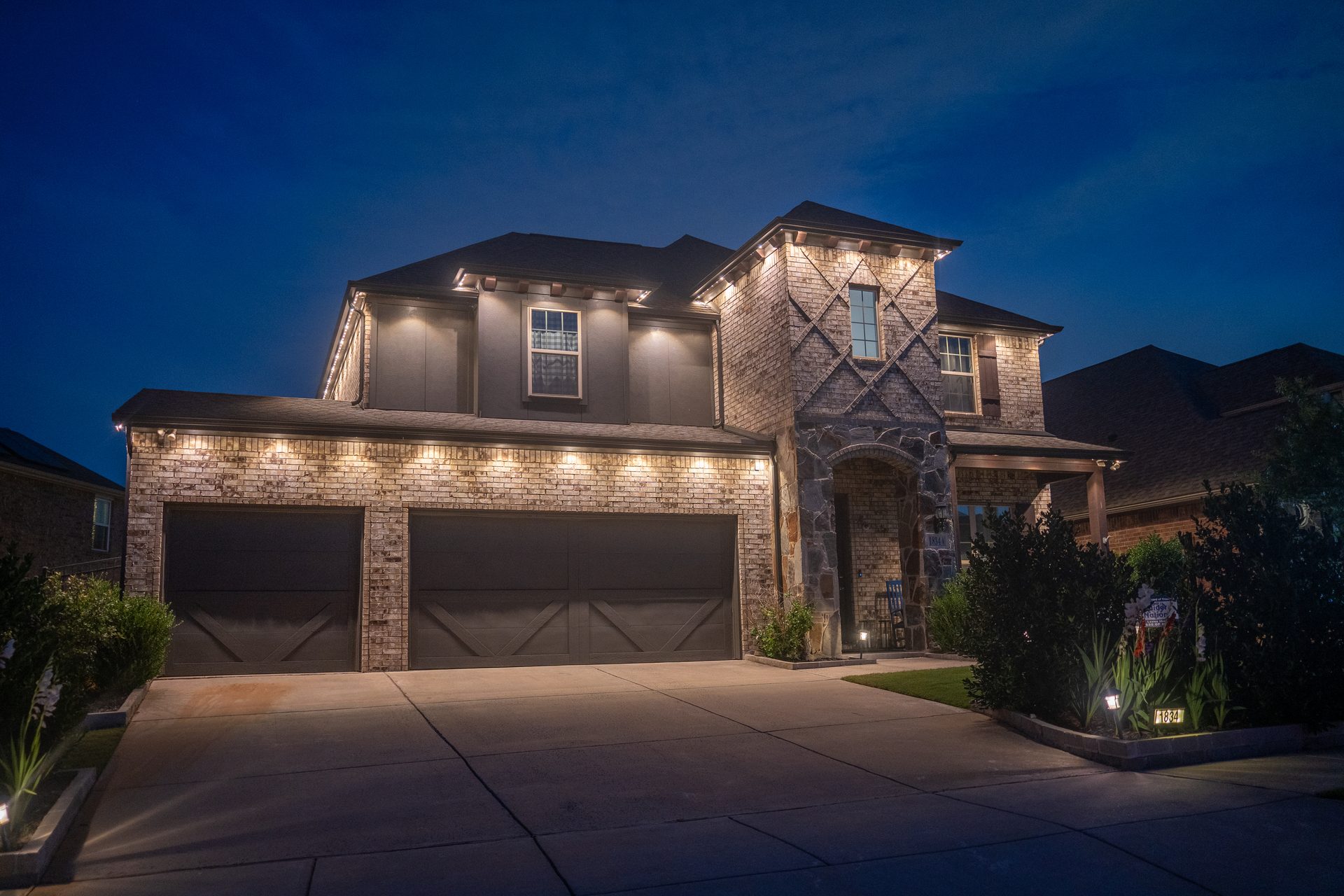

Where Your Lights Will Go
Site photos from your home, marked to show the track path for your selected package.
What's Included
💡

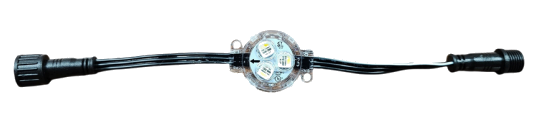

16M+ Color LED Nodes
Individually addressable, weatherproof LED nodes along your rooflines.
📱
Smart App Control
Wi-Fi enabled control hub — change colors, scenes, and schedules from your phone.
🌦️
Weatherproof Build
IP65/IP68-rated components engineered for permanent outdoor installation.
⏳
50,000-Hour LED Life
Lifetime-warrantied LED modules built to run for decades.
🎨
Color-Matched Track
Powder-coated aluminum track in a finish that matches your home.
🔧
Certified Installation
Installed by a factory-trained, certified Bosso dealer team.
Choose Your Track Color
16 powder-coat finishes available — swatch colors shown are for reference.
Photos here get uploaded to GHL and attached to this opportunity so installers can see exactly what was agreed on-site.
